RT8966H - Mini Analog Baseband Power Management

Richtek

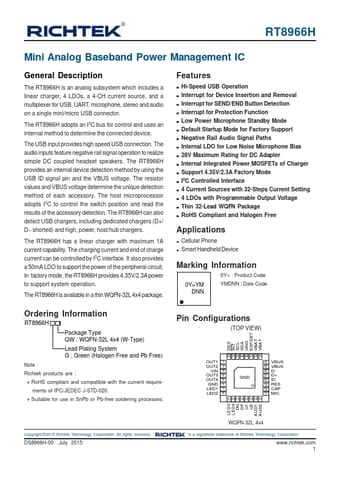

RT8966H Datasheet Preview — Preview of RT8966H PDF

Datasheet Details

Part number	RT8966H
Manufacturer	Richtek ↗
File Size	414.16 KB
Description	Mini Analog Baseband Power Management
Datasheet	RT8966H-Richtek.pdf

RT8966H Product details

Description

The RT8966H is an analog subsystem which includes a linear charger, 4 LDOs, a 4-CH current source, and a multiplexer for USB, UART, microphone, stereo and audio on a single mini/micro USB connector.

Features

Hi-Speed USB Operation.
Interrupt for Device Insertion and Removal.
Interrupt for SEND/END Button Detection.
Interrupt for Protection Function.
Low Power Microphone Standby Mode.
Default Startup Mode for Factory Support.
Negative Rail Audio Signal Paths.
Internal LDO for Low Noise Microphone Bias.
28V Maximum Rating for DC Adapter.
Internal Integrated Power MOSFETs of Charger.
Support 4.35V/2.3A Factory Mode.
I2C Controlled Interface.
