RTQ2072-QA, Automotive CIS/CCM PMIC

RTQ2072-QA Automotive CIS/CCM PMIC for Ultra Compact Camera and High Image Quality System General .
The RTQ2072 is an integrated PMIC with three step down converters and one high PSRR low-dropout (LDO) regulator for automotive camera applications.

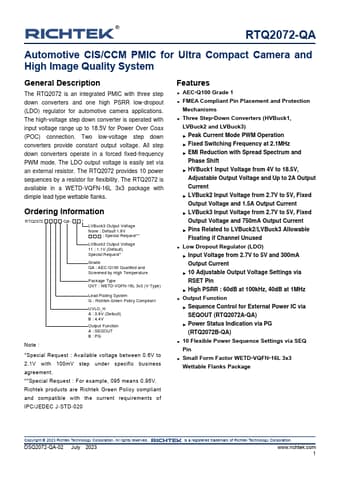

datasheet Preview Page 1 from Datasheet4u.com

RTQ2072-QA-Richtek.pdf

RTQ2072-QA Datasheet Preview — Preview of RTQ2072-QA PDF

Datasheet Details

Part number:

RTQ2072-QA

Manufacturer:

Richtek

File Size:

1.09 MB

Description:

Automotive CIS/CCM PMIC

Features

* AEC-Q100 Grade 1
* FMEA Compliant Pin Placement and Protection Mechanisms
* Three Step-Down Converters (HVBuck1, LVBuck2 and LVBuck3)
* Peak Current Mode PWM Operation
* Fixed Switching Frequency at 2.1MHz
* EMI Reduction with Spread Spectrum and Phase Shift
* HVBuck1 I

Applications

* The high-voltage step down converter is operated with input voltage range up to 18.5V for Power Over Coax (POC) connection. Two low-voltage step down converters provide constant output voltage. All step down converters operate in a forced fixed-frequency PWM mode. The LDO output voltage is easily s
