RTQ2076-QT

Automotive CIS/CCM PMIC

RTQ2076-QT Features

* AEC-Q100 Grade 1

* FMEA Compliant Pin Placement and Protection Mechanisms

* Three Step-Down Converters (HVBuck1, LVBuck2 and LVBuck3)

* Peak Current Mode PWM Operation

* Fixed Switching Frequency at 2.1MHz

* EMI Reduction with Spread Spectrum and Phase Shift

* HVBuck1 I

RTQ2076-QT General Description

The RTQ2076 is an integrated PMIC with three step down converters and one high PSRR low-dropout (LDO) regulator for automotive camera applications. The high-voltage step down converter is operated with input voltage range up to 18.5V for Power Over Coax (POC) connection. Two low-voltage step down co.

RTQ2076-QT Datasheet (1.07 MB)

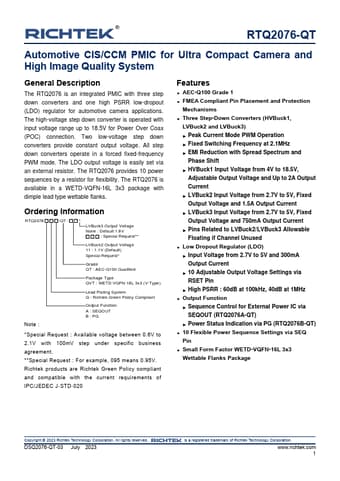

Preview of RTQ2076-QT PDF

Datasheet Details

Part number:

RTQ2076-QT

Manufacturer:

Richtek

File Size:

1.07 MB

Description:

Automotive cis/ccm pmic.
