Description

RTQ2072-QT Automotive CIS/CCM PMIC for Ultra Compact Camera and High Image Quality System General .
The RTQ2072 is an integrated PMIC with three step down converters and one high PSRR low-dropout (LDO) regulator for automotive camera applications.

📥 Download Datasheet

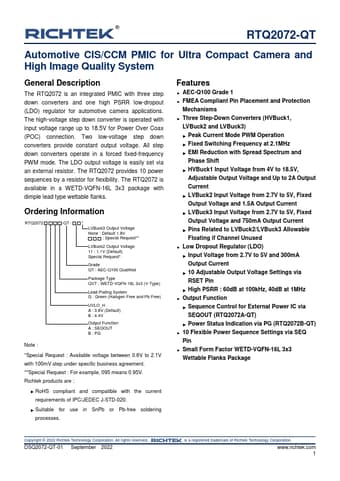

Preview of RTQ2072-QT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RTQ2072-QT
Manufacturer
Richtek
File Size
619.82 KB
Datasheet
RTQ2072-QT-Richtek.pdf
Description
Automotive CIS/CCM PMIC

Features

* AEC-Q100 Grade 1
* FMEA Compliant Pin Placement and Protection Mechanisms
* Three Step-Down Converters (HVBuck1, LVBuck2 and LVBuck3)
* Peak Current Mode PWM Operation
* Fixed Switching Frequency at 2.1MHz
* EMI Reduction with Spread Spectrum and Phase Shift
* HVBuck1 I

Applications

* The high-voltage step down converter is operated with input voltage range up to 18.5V for Power Over Coax (POC) connection. Two low-voltage step down converters provide constant output voltage. All step down converters operate in a forced fixed-frequency PWM mode. The LDO output voltage is easily s
