2SD2391 - Medium Power Transistor

Rohm

📥 Download Datasheet

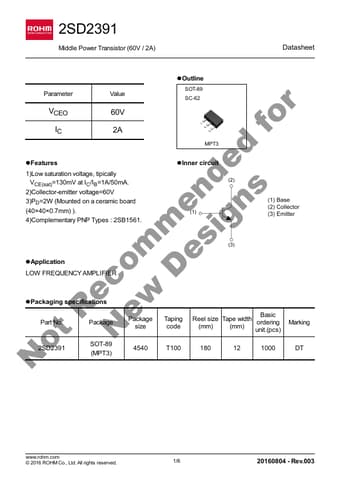

2SD2391 Datasheet Preview — Preview of 2SD2391 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SD2391
Manufacturer	ROHM ↗
File Size	1.27 MB
Description	Medium Power Transistor
Datasheet	2SD2391_Rohm.pdf

2SD2391 Product details

Features

e 1)Low saturation voltage, tipically 　VCE(sat)=130mV at IC/IB=1A/50mA. d 2)Collector-emitter voltage=60V n s 3)PD=2W (Mounted on a ceramic board e n (40×40×0.7mm) ). 4)Complementary PNP Types : 2SB1561. 　 SOT-89 　　 SC-62 　　　 MPT3 　 lInner circuit mm esig l.
