BA033CC0FP, BA05CC0FP, 2A/1A Fixed Output LDO Regulators

Datasheet 2A/1A Fixed Output LDO Regulators BAxxDD0T Series BAxxCC0T Series BAxxCC0FP Series 2A/1A Fixed Output LDO Regulators With Shutdown Swicth B.
Standard Fixed Output LDO Regulators are low-saturation regulators, available for output s up to 2A / 1A.

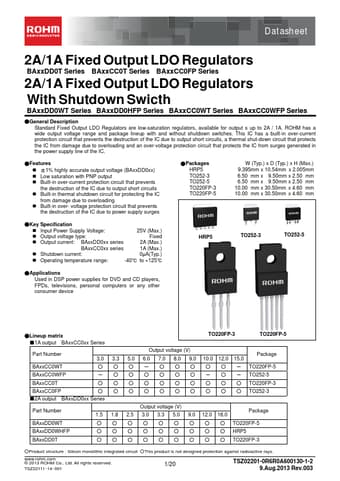

datasheet Preview Page 1 from Datasheet4u.com

BA05CC0FP_Rohm.pdf

BA033CC0FP Datasheet Preview — This datasheet PDF includes multiple part numbers: BA033CC0FP, BA05CC0FP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BA033CC0FP, BA05CC0FP

Manufacturer:

ROHM ↗

File Size:

499.67 KB

Description:

2A/1A Fixed Output LDO Regulators

Note:

This datasheet PDF includes multiple part numbers: BA033CC0FP, BA05CC0FP.
Please refer to the document for exact specifications by model.

Features

* ±1% highly accurate output voltage (BAxxDD0xx)
* Low saturation with PNP output
* Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
* Built-in thermal shutdown circuit for protecting the IC from damage due

Applications

* Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
* Lineup matrix
* 1A output BAxxCC0xx Series TO220FP-3 TO220FP-5 Part Number Output voltage (V) 3.0 3.3 5.0 6.0 7.0 8.0 9.0 10.0 12.0 15.0 Package BAxxCC0WT ○ ○ ○ － ○ ○
