BA01303 - Triple Band(EGSM900/DCS1800/PCS1900) InGaP HBT Front-end module

BA01303 Description

MITSUBISHI SEMICONDUCTOR BA01303 Triple Band(EGSM900/DCS1800/PCS1900) InGaP HBT Front-end module Specification are subject to change w.
BA01303 is a front-end module for triple band (EGSM900/DCS1800/PCS1900) handheld phone using InGaP HBT technology.

BA01303 Features

* Low voltage operation Vc=3.5V
* High output power Po=33.0dBm(min. ) @f=880 - 915MHz Po=30.0dBm(min. ) @f=1710 - 1785MHz Po=30.0dBm(min. ) @f=1850 - 1910MHz
* Single voltage operation
* Single power control terminal
* Band select switch
* Tx/Rx select switch
* Surface mount packag

📥 Download Datasheet

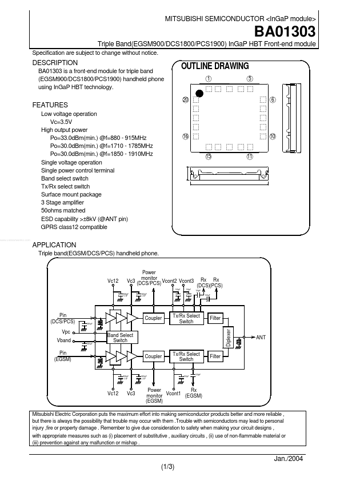

Preview of BA01303 PDF
