BA000LBSG

Super-mini package regulator IC

BA000LBSG Features

* 1) Internal output transistor (IO=150mA) 2) Internal temperature protection circuit 3) Power-saving function enables designs with low current consumption 4) High level of ripple rejection (R.R.=66dB) 5) SMP5 super-mini package enables space-saving designs 6) Low I / O voltage differential (90mV Typ.

BA000LBSG General Description

Pin No. 1 2 3 4 5 Pin name Vcc GND CTL C OUT Power supply Ground Power-save function Ripple improvement Output Functiom !Input / output circuits VCC (1pin) CTL (3pin) VO (5pin) C (4pin) Regulator IC !Electrical characteristics BA028LBSG (unless otherwise noted, Ta=25°C, VCC=3.8V) Parameter Stan.

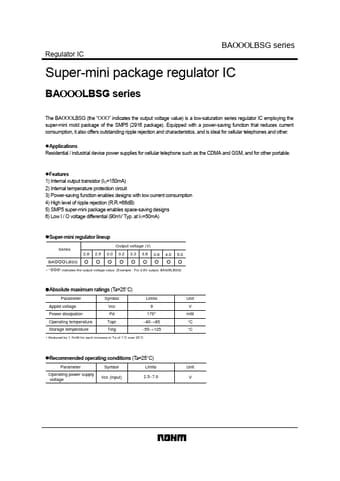

BA000LBSG Datasheet (116.32 KB)

Preview of BA000LBSG PDF

Datasheet Details

Part number:

BA000LBSG

Manufacturer:

ROHM ↗

File Size:

116.32 KB

Description:

Super-mini package regulator ic.
Regulator IC BAΟΟΟLBSG series Super-mini package regulator IC BAΟΟΟLBSG series The BAΟΟΟLBSG (the “ΟΟΟ” indicates the output voltage value) is a low.
