BA00BC0WT

1A Variable/Fixed Output LDO Regulators

BA00BC0WT Features

* Output voltage accuracy: ±2% Broad output range available: 1.5 V -10 V (BAxxBC0 series)

* Low saturation-voltage type with PNP output

* Built-in overcurrent protection circuit

* Built-in thermal shutdown circuit

* Integrated shutdown switch (BAxxBC0WT, BAxxB

BA00BC0WT General Description

The BAxxBC0 are low-saturation regulators with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, .

BA00BC0WT Datasheet (552.45 KB)

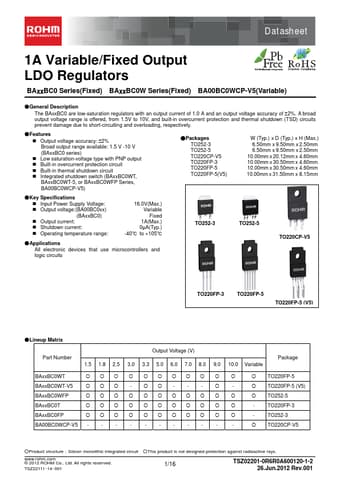

Preview of BA00BC0WT PDF

Datasheet Details

Part number:

BA00BC0WT

Manufacturer:

ROHM ↗

File Size:

552.45 KB

Description:

1a variable/fixed output ldo regulators.
