BA5830FM - MOTOR CONTROLLER

Product Overview

Rohm

Datasheet Details

Part number	BA5830FM
Manufacturer	ROHM
File Size	174.84 KB
Description	MOTOR CONTROLLER
Datasheet	BA5830FM Datasheet

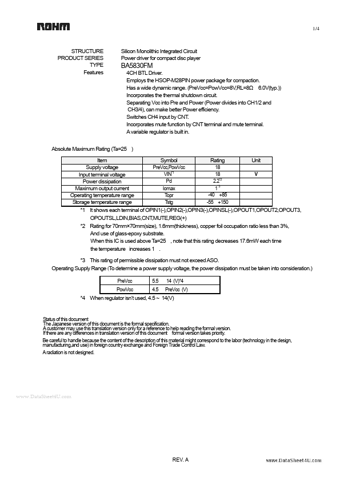

Additional preview pages of the BA5830FM datasheet.

Product details

Description

of this material might correspond to the labor (technology in the design, manufacturing,and use) in foreign country exchange and Foreign Trade Control Law.

Features

Silicon Monolithic Integrated Circuit Power driver for compact disc player BA5830FM 4CH BTL Driver. Employs the HSOP-M28PIN power package for compaction. Has a wide dynamic range. (PreVcc=PowVcc=8V,RL=8Ω 6.0V(typ. )) Incorporates the thermal shutdown circuit. Separating Vcc into Pre and Power (Power divides into CH1/2 and CH3/4), can make better Power efficiency. Switches CH4 input by CNT. Incorporates mute function by CNT terminal and mute terminal. A variable regulator is built in. Absolute.
