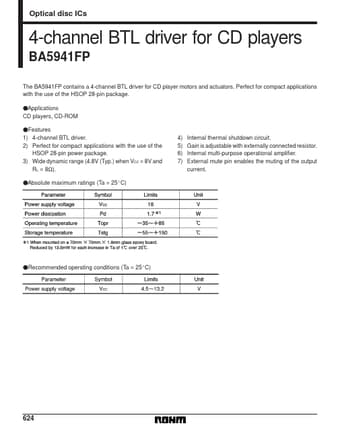

BA5941FP 4-channel BTL driver for CD players

625 Optical disc ICs FInput / output circuits BA5941FP 626 Optical disc ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 8V, BIAS = 2.5V, RL = 8Ω) BA5941FP 627 Optical disc ICs FMeasurement circuits 〈Driver block〉 BA5941FP 〈Operational amplifier block〉 628 Optic.

BA5941FP Features

* 1) 4-channel BTL driver. 2) Perfect for compact applications with the use of the HSOP 28-pin power package. 3) Wide dynamic range (4.8V (Typ.) when VCC = 8V and RL = 8Ω). FAbsolute maximum ratings (Ta = 25_C) 4) 5) 6) 7) Internal thermal shutdown circuit. Gain is adjustable with externally connect
