BA5944FP

BTL Driver IC for CD-ROM

BA5944FP Features

* 1) 2-channel dynamic range actuator driver built-in 2) Highly accurate (+/ 2%) 3.6V regulator 2-channel built-in (1-channel regulator can be controlled with On/Off switch.) 3) Highly accurate (+/ 2%) 4.2V reset curcuit built-in 4) Includes two general purpose comparators. Applications Slim CD-ROM, e

BA5944FP General Description

The BA5944FP is a BTL driver IC (actuator operation) developed for CD-ROMs. Two highly accurate 3.6V regulators and a 4.2V reset circuit that acts as a peripheral power supply are included, as well as two general purpose comparators. An achievement in space savings of the set and reducing components.

BA5944FP Datasheet (82.92 KB)

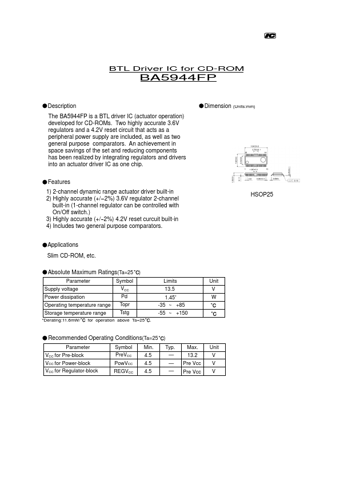

Preview of BA5944FP PDF

Datasheet Details

Part number:

BA5944FP

Manufacturer:

ROHM ↗

File Size:

82.92 KB

Description:

Btl driver ic for cd-rom.
