BA5972FP - BTL driver for CD-ROMs

Product Overview

Rohm

Datasheet Details

Part number	BA5972FP
Manufacturer	ROHM
File Size	152.61 KB
Description	BTL driver for CD-ROMs
Datasheet	BA5972FP Datasheet

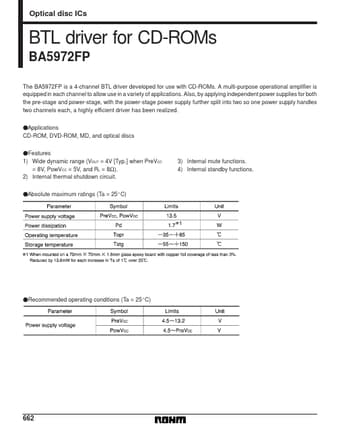

Additional preview pages of the BA5972FP datasheet.

Product details

Description

663 Optical disc ICs FInput / output circuits BA5972FP 664 Optical disc ICs BA5972FP FElectrical characteristics (unless otherwise noted, Ta = 25_C, PreVCC = 8V, PowVCC1 = 5V, PowVCC2 = 8V, BIAS = 2.5V, FElectrical characteristics (RL = 8Ω) 665 Optical disc ICs FMeasurement circuit BA5972FP 666 Optical disc ICs FMeasurement circuit switch table (1) Circuit current and standby (VMT = 0V, VIN = 2.5V, RL ! OFF, OPB ! 1, NF ! 1, OPRL ! 1) BA5972FP (2) Driver block (VST = 5V, RL ! ON,

Features

1) Wide dynamic range (VOUT = 4V [Typ. ] when PreVCC = 8V, PowVCC = 5V, and RL = 8Ω). 2) Internal thermal shutdown circuit. FAbsolute maximum ratings (Ta = 25_C) 3) Internal mute functions. 4) Internal standby functions. FRecommended operating conditions (Ta = 25_C) 662 Optical disc ICs FBlock diagram BA5972FP FPin.
