BA5973FP - 3-channel BTL driver for CD/ CD-ROM/ DVD/ and DVD-ROM

Product Overview

Rohm

Datasheet Details

Part number	BA5973FP
Manufacturer	ROHM
File Size	137.32 KB
Description	3-channel BTL driver for CD/ CD-ROM/ DVD/ and DVD-ROM
Datasheet	BA5973FP Datasheet
Additional preview pages of the BA5973FP datasheet.

Product details

Description

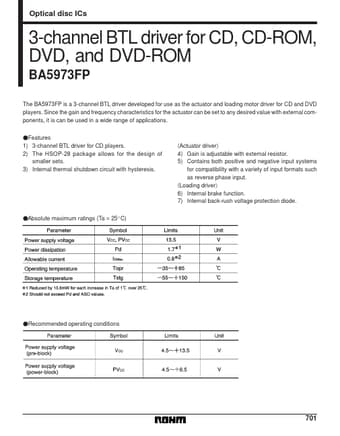

702 Optical disc ICs BA5973FP FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 12V, PVCC = 5V, f = 1kHz, RL = 8Ω) 703 Optical disc ICs FMeasurement circuit BA5973FP 704 Optical disc ICs FCircuit operation The analog switch pin 10, the mute pin 1, and the loading driver input logic operate as shown below.(1) Mute input (pin 1) truth table BA5973FP (3) Loading driver logic input (pins 13 and 17) truth table (2) Analog switch input (pin 10) truth table FApplicat

Features

1) 3-channel BTL driver for CD players. 2) The HSOP-28 package allows for the design of smaller sets. 3) Internal thermal shutdown circuit with hysteresis. 〈Actuator driver〉 4) Gain is adjustable with external resistor. 5) Contains both positive and negative input systems for compatibility with a variety of input formats such as reverse phase input. 〈Loading driver〉 6) Internal brake function. 7) Internal back-rush voltage protection diode. FAbsolute maximum ratings (Ta = 25_C) FRecommended o.
