BA5984FP - Power Driver

Product Overview

Rohm

📥 Download Datasheet

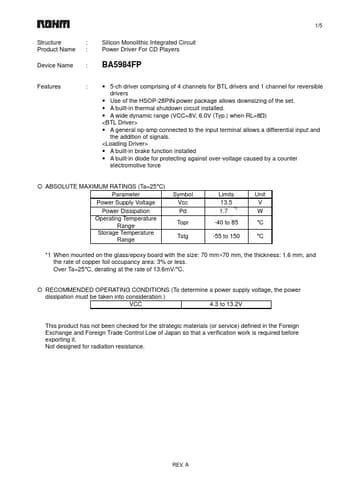

BA5984FP Power Driver by Rohm - Datasheet Preview — Datasheet preview – BA5984FP

Datasheet Details

Part number	BA5984FP
Manufacturer	ROHM
File Size	87.32 KB
Description	Power Driver
Datasheet	BA5984FP Datasheet
Additional preview pages of the BA5984FP datasheet.

Product details

Features

:.
5-ch driver comprising of 4 channels for BTL drivers and 1 channel for reversible drivers.
Use of the HSOP-28PIN power package allows downsizing of the set.
A built-in thermal shutdown circuit installed.
A wide dynamic range (VCC=8V, 6.0V (Typ. ) when RL=8Ω).
A general op-amp connected to the input terminal allows a differential input and the addition of signals.
A built-in brake function installed.
