BA6427F - Single-phase full-wave motor driver

FTruth table 764 Motor driver ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 5V) BA6427F 765 Motor driver ICs FLock detection The automatic restart circuit detects a motor lock condition and automatically turns off the output power.

When the lock condition is cleare

Motor driver ICs Single-phase full-wave motor driver BA6427F The BA6427F is a single-phase full-wave motor driver for fan motors.

By using this driver, a single-phase, full-wave motor driver circuit can be built with fewer components than a circuit using operational amplifiers.

Lock detection and automatic restart mechanisms, which are required for fan motors, are also built in.

A rotational-speed sensing output pin is provided for Ho output.

FApplications Single-phase, full-wave fan motors FFe

BA6427F Features

* 1) Equipped with lock detection and rotational-speed sensing functions. 2) Compact SOP-8 package reduces the number of external components for a reduced mounting area. FAbsolute maximum ratings (Ta = 25_C) 3) Automatic restart when the motor lock is undone. FRecommended operating conditions 763

BA6427F_Rohm.pdf

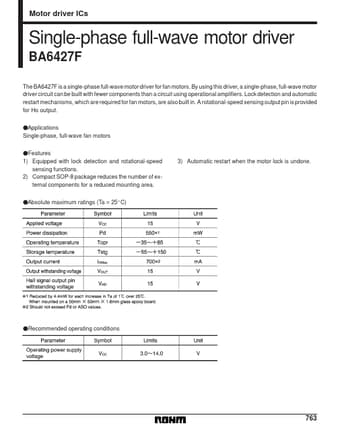

Preview of BA6427F PDF
