BA6664FM - 1ch Spindle Motor Driver ICs

Rohm

📥 Download Datasheet

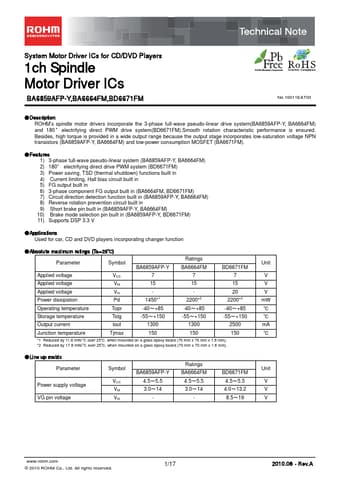

BA6664FM Datasheet Preview — Preview of BA6664FM PDF

Datasheet Details

Part number: BA6664FM
Manufacturer: ROHM ↗
File Size: 580.09 KB
Datasheet: BA6664FM_Rohm.pdf
Description: 1ch Spindle Motor Driver ICs

BA6664FM Product details

Description

ROHM’s spindle motor drivers incorporate the 3-phase full-wave pseudo-linear drive system(BA6859AFP-Y, BA6664FM) and 180 ° electrifying direct PWM drive system(BD6671FM).Smooth rotation characteristic performance is ensured..

Features

1) 3-phase full-wave pseudo-linear system (BA6859AFP-Y, BA6664FM) 2) 180° electrifying direct drive PWM system (BD6671FM) 3) Power saving, TSD (thermal shutdown) functions built in 4) Current limiting, Hall bias circuit built in 5) FG output built in 6) 3-phase component FG output built in (BA6664FM, BD6671FM) 7) Circuit direction detection function built in (BA6859AFP-Y, BA6664FM) 8) Reverse rotation prevention circuit.
