BA6665FM

Motor driver for CD-ROMs

BA6665FM Features

* 1) 3-phase, full-wave pseudo linear driving system 2) Built in power save 3) Built in thermal shut down circuit 4) Built in current limit circuit 5) Built in Hall Bias circuit 6) Built in FG-output ( 3 phase parallel output ) 7) With switching function of regular / reverse rotations zAbsolute maxim

BA6665FM General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 FIN Pin Name N.C. N.C. A3 N.C. A2 N.C. A1 GND H1 + Function N.C. N.C. Output3 for motor N.C. Output2 for motor N.C. Output1 for motor GND Hall input Amp1. positive input Hall input Amp1. negative input Hall input Am.

BA6665FM Datasheet (67.31 KB)

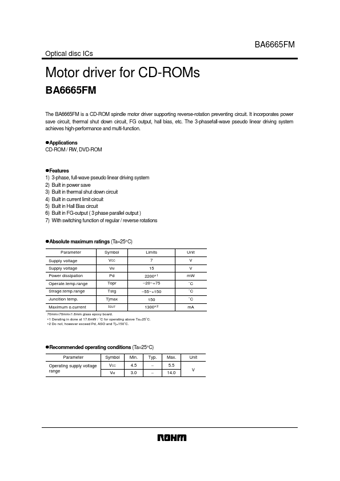

Preview of BA6665FM PDF

Datasheet Details

Part number:

BA6665FM

Manufacturer:

ROHM ↗

File Size:

67.31 KB

Description:

Motor driver for cd-roms.
BA6665FM Optical disc ICs Motor driver for CD-ROMs BA6665FM The BA6665FM is a CD-ROM spindle motor driver supporting reverse-rotation preventing circ.
