BA7046 - SYNC separator IC with AFC

Rohm

📥 Download Datasheet

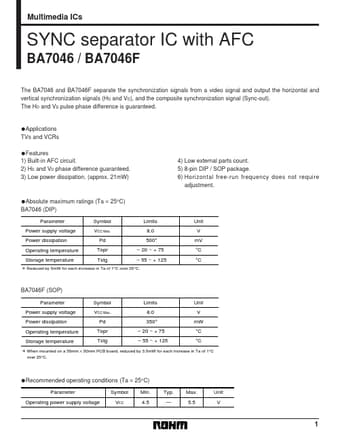

BA7046 Datasheet Preview — Preview of BA7046 PDF

Datasheet Details

Part number: BA7046
Manufacturer: ROHM ↗
File Size: 92.15 KB
Datasheet: BA7046_Rohm.pdf
Description: SYNC separator IC with AFC

BA7046 Product details

Description

Pin No. Input / output circuits VCC VCC 12k 200 1k 100µA 1pin 5k 2pin 200 3pin Fig.1 Fig.2 VCC Fig.3 VCC 3k 3k 3k VCC 10k 200 1k 4pin 100 10µA 3k 3k 3k 6pin 8pin Fig.4 Fig.5 Fig.6 2 Multimedia ICs BA7046 / BA7046F CC Electrical characteristics (unless otherwise noted Ta = 25°C and V Parameter Quiescent c

Features

1) Built-in AFC circuit. 2) HD and VD phase difference guaranteed. 3) Low power dissipation. (approx. 21mW) 4) Low external parts count. 5) 8-pin DIP / SOP package. 6) Horizontal free-run frequency does not require adjustment. Absolute maximum ratings (Ta = 25°C).
BA7046 (DIP) Parameter Power supply voltage Power dissipation Operating temperature Storage temperature Symbol VCC Max. Pd Topr Tstg Limits 8.0 500∗.
20 ~ + 75.
55 ~ + 125 Unit V mV °C °C ∗ Reduc.
