BA7062F - SYNC separator IC with AFC

Rohm

📥 Download Datasheet

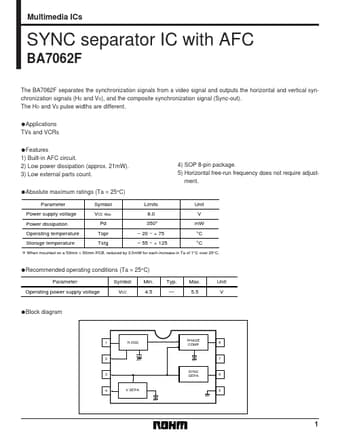

BA7062F Datasheet Preview — Preview of BA7062F PDF

Datasheet Details

Part number: BA7062F
Manufacturer: ROHM ↗
File Size: 88.47 KB
Datasheet: BA7062F_Rohm.pdf
Description: SYNC separator IC with AFC

BA7062F Product details

Description

Pin No. Input / output circuits VCC VCC 200 12k 200 2pin 1k 5k 100µA 1pin 3pin Fig.1 Fig.2 Fig.3 VCC 3k VCC VCC 10k 200 4pin 100 6pin 10µA 3k 3k 3k 1k 8pin 3k 3k Fig.4 Fig.5 Fig.6 2 Multimedia ICs BA7062F CC Electrical characteristics (unless otherwise noted, Ta = 25°C and V Parameter Quiescent current M

Features

1) Built-in AFC circuit. 2) Low power dissipation (approx. 21mW). 3) Low external parts count. 4) SOP 8-pin package. 5) Horizontal free-run frequency does not require adjustment.
Absolute maximum ratings (Ta = 25°C) Parameter Power supply voltage Power dissipation Operating temperature Storage temperature Symbol VCC Max. Limits 8.0 350∗.
20 ~ + 75.
55 ~ + 125 Unit V mW °C °C Pd Topr Tstg ∗ When mounted on a 50mm × 50mm PCB, reduced by 3.5mW for each incr.
