BA7207AK

SECAM chroma signal processor for VHS VCRs

BA7207AK Features

* 1) All filters required for SECAM chroma signal processing are provided. 2) Built-in chroma killer circuit. 3) Built-in switch circuit for selecting PAL chroma or SECAM chroma for the PB / REC system output.

* Absolute maximum ratings (Ta = 25°C) Parameter Power supply voltage Pow

BA7207AK General Description

Pin No. Pin name 1 (40) RECIN Function Recording system input. Input the REC system chroma signal. PB sync gate output. Test pin. Outputs the chroma signal after it is multiplied by four and passed through the sync gate. Normally connected to VCC to prevent interference. Filter fo adjustment pin 1..

BA7207AK Datasheet (250.58 KB)

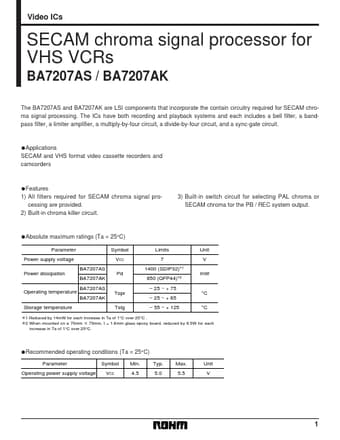

Preview of BA7207AK PDF

Datasheet Details

Part number:

BA7207AK

Manufacturer:

ROHM ↗

File Size:

250.58 KB

Description:

Secam chroma signal processor for vhs vcrs.
Video ICs SECAM chroma signal processor for VHS VCRs BA7207AS / BA7207AK The BA7207AS and BA7207AK are LSI components that incorporate the contain ci.
