BA7735FS Datasheet - Rohm

BA7735FS Electronic volume for VCRs and audio devices

BA7735FS FInput / output circuit 867 Audio ICs FElectrical characteristics (unless otherwise noted, VCC = )5.0V, VEE = *5.0V, Ta = 25_C) BA7735FS 868 Audio ICs FMeasurement circuit BA7735FS FControl pin description EVR ON / OFF This selects the EVR ON or EVR OFF mode. 869 Audio I.

BA7735FS Features

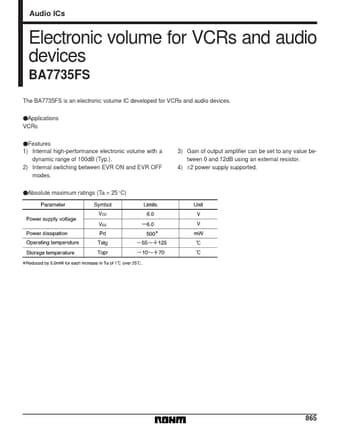

* 1) Internal high-performance electronic volume with a dynamic range of 100dB (Typ.). 2) Internal switching between EVR ON and EVR OFF modes. FAbsolute maximum ratings (Ta = 25_C) 3) Gain of output amplifier can be set to any value between 0 and 12dB using an external resistor. 4) ±2 power supply su

BA7735FS Datasheet (74.17 KB)
