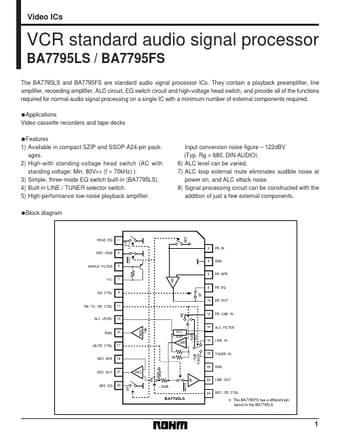

BA7795FS VCR standard audio signal processor

BA7795LS Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 BA7795FS Pin No. 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1 2 3 4 5 6 Pin name HEAD EQ PB IN REC HSW GND RIPPLE FILTER PB NFB VCC PB EQ EQ CTRL PB OUT PB / TU / EE CTRL PB LINE IN ALC LEVEL ALC FILTER BIAS LIN.

BA7795FS Features

* 1) Available in compact SZIP and SSOP-A24-pin pack2) 3) 4) 5) ages. High-with standing-voltage head switch (AC with standing voltage: Min. 80VP-P (f = 70kHz) ). Simple, three-mode EQ switch built-in (BA7795LS). Built-in LINE / TUNER selector switch. High-performance low-noise playback ampl
