BD3021HFP-M - 500mA Output LDO Regulators

Rohm

📥 Download Datasheet

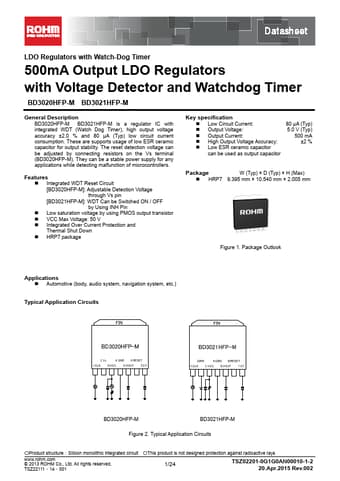

BD3021HFP-M Datasheet Preview — Preview of BD3021HFP-M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BD3021HFP-M
Manufacturer	ROHM ↗
File Size	792.38 KB
Description	500mA Output LDO Regulators
Datasheet	BD3021HFP-M_Rohm.pdf

BD3021HFP-M Product details

Description

BD3020HFP-M BD3021HFP-M is a regulator IC with integrated WDT (Watch Dog Timer), high output voltage accuracy ±2.0 % and 80 µA (Typ) low circuit current consumption.

Features

Integrated WDT Reset Circuit [BD3020HFP-M]: Adjustable Detection Voltage through Vs pin [BD3021HFP-M]: WDT Can be Switched ON / OFF by Using INH Pin.
Low saturation voltage by using PMOS output transistor.
VCC Max Voltage: 50 V.
Integrated Over Current Protection and Thermal Shut Down.
HRP7 package Key specification.
Low Circuit Current:.
Output Voltage:.
Output Current:.
High Output Voltage Accuracy:.
Low ESR ceramic capacitor can be used as o.
