BD8160AEFV 12V Input Multi-channel System Power Supply IC

BD8160AEFV Description

www.DataSheet4U.com Power Supply IC Series for TFT-LCD Panels 12V Input Multi-channel System Power Supply IC BD8160AEFV No.09035EBT01 *Descript.
The BD8160AEFV is a system power supply for the TFT-LCD panels used for liquid crystal TVs.

BD8160AEFV Features

* 1) Step-up and step-down DC/DC converter 2) Incorporates 2.6 A N-channel FET. 3) Incorporates positive/negative charge pumps. 4) Input voltage limit: 8 V to 18 V 5) Feedback voltage: 1.162 V ± 1% 6) Switching frequency: 500 kHz / 750kHz 7) Protection circuit: Under voltage lockout protection circuit

BD8160AEFV Applications

* Power supply for the TFT-LCD panels used for LCD TVs
* Absolute maximum ratings (Ta = 25°C) Parameter Supply Voltage Power Dissipation Operating Temperature Range Storage Temperature Range Junction Temperature SW Voltage SWB Voltage EN1,EN2 Voltage Symbol SUP,VIN Pd Topr Tstg Tjmax VSW VSWB VEN1

📥 Download Datasheet

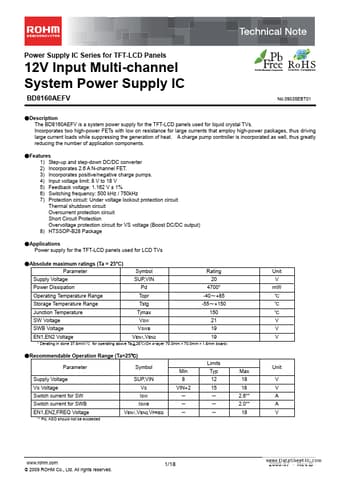

Preview of BD8160AEFV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8160AEFV
Manufacturer
ROHM ↗
File Size
470.34 KB
Datasheet
BD8160AEFV_Rohm.pdf
Description
12V Input Multi-channel System Power Supply IC
