Part number: BD8166EFV
Manufacturer: ROHM (https://www.rohm.com/)
File Size: 951.97KB
Download: 📄 Datasheet
Description: 12V Input Multi-channel System Power Supply
Part number: BD8166EFV
Manufacturer: ROHM (https://www.rohm.com/)
File Size: 951.97KB
Download: 📄 Datasheet
Description: 12V Input Multi-channel System Power Supply

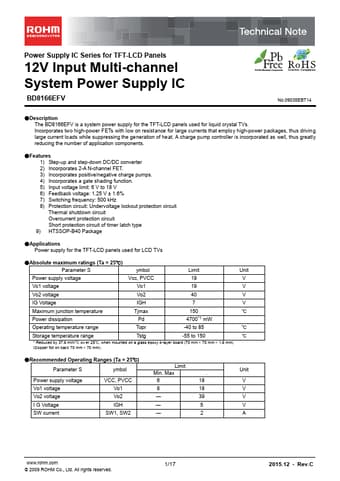

1) Step-up and step-down DC/DC converter 2) Incorporates 2-A N-channel FET. 3) Incorporates positive/negative charge pumps. 4) Incorporates a gate shading function. 5) In.
Power supply for the TFT-LCD panels used for LCD TVs
*Absolute maximum ratings (Ta = 25℃) Parameter S
ymbol
Limit.
The BD8166EFV is a system power supply for the TFT-LCD panels used for liquid crystal TVs. Incorporates two high-power FETs with low on resistance for large currents that emplo y high-power packages, thus drivin g large current loads while suppressin.
