BD8160EFV Datasheet, ic equivalent, Rohm

PDF File Details

Part number: BD8160EFV

Manufacturer: ROHM (https://www.rohm.com/)

File Size: 489.08KB

Download: 📄 Datasheet

Description: 12V Input Multi-channel System Power Supply IC

Datasheet Preview: BD8160EFV 📥 Download PDF (489.08KB)

BD8160EFV Features and benefits

1) Step-up and step-down DC/DC converter 2) Incorporates 2.6 A N-channel FET. 3) Incorporates positive/negative charge pumps. 4) Input voltage limit: 8 V to 18 V 5) Feedb.

BD8160EFV Application

Power supply for the TFT-LCD panels used for LCD TVs
*Absolute maximum ratings (Ta = 25°C) Parameter Symbol Rati.

BD8160EFV Description

The BD8160AEFV is a system power supply for the TFT-LCD panels used for liquid crystal TVs. Incorporates two high-power FETs with low on resistance for large currents that employ high-power packages, thus driving large current loads while suppressing.

Image gallery

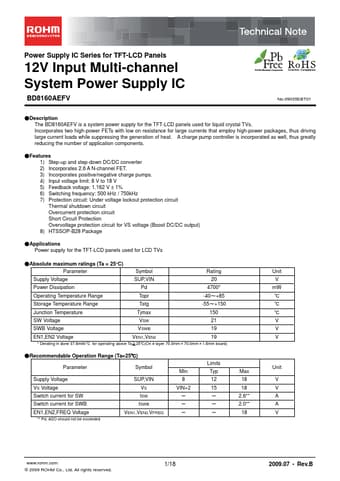

Page 2 of BD8160EFV Page 3 of BD8160EFV
