BD83732HFP-M - 1ch Source Driver

Rohm

📥 Download Datasheet

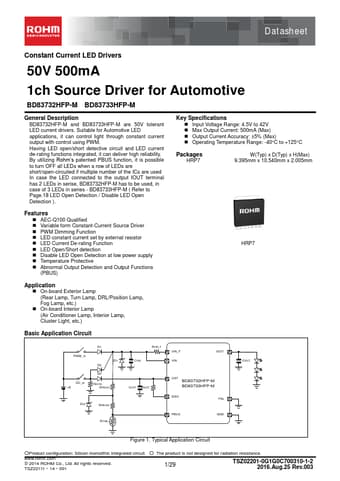

BD83732HFP-M Datasheet Preview — Preview of BD83732HFP-M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BD83732HFP-M
Manufacturer: ROHM ↗
File Size: 1.37 MB
Datasheet: BD83732HFP-M-Rohm.pdf
Description: 1ch Source Driver

BD83732HFP-M Product details

Description

BD83732HFP-M and BD83733HFP-M are 50V tolerant LED current drivers.

Features

AEC-Q100 Qualified.
Variable form Constant-Current Source Driver.
PWM Dimming Function.
LED constant current set by external resistor.
LED Current De-rating Function.
LED Open/Short detection.
Disable LED Open Detection at low power supply.
Temperature Protective.
Abnormal Output Detection and Output Functions (PBUS) Key Specifications.
Input Voltage Range: 4.5V to 42V.
Max Output Current: 500mA.
