BD88415GUL, BD88400GUL Datasheet - Rohm

BD88415GUL Coupling Capacitorless Headphone Amplifiers

BD88xxxGUL is output coupling capacitorless headphone amplifier. This IC has a negative voltage generator of regulated type built-in and generates the direct regulated negative voltage from the supply voltage. It is possible to drive headphones in a ground standard with both voltage of the positive .

BD88415GUL Features

* 1) 2.4V to 5.5V Single-Supply Operation 2) No Bulky DC-Blocking Capacitors Required 3) No Degradation of Low-Frequency Response Due to Output Capacitors 4) Ground-Referenced Outputs 5) Gain setting BD88400GUL: Variable gain with external resistors BD88410GUL: -1.0V/V BD88415GUL: -1.5V/V BD88420GUL:

BD88400GUL-Rohm.pdf

This datasheet PDF includes multiple part numbers: BD88415GUL, BD88400GUL. Please refer to the document for exact specifications by model.

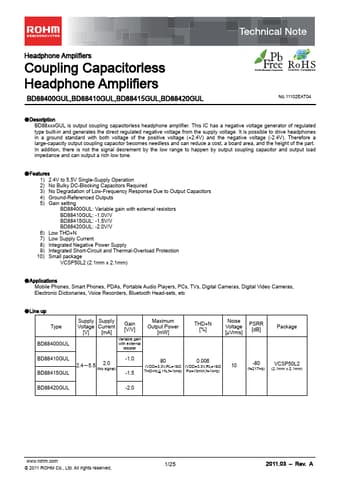

BD88415GUL Datasheet Preview Page 2 BD88415GUL Datasheet Preview Page 3

Datasheet Details

Part number:

BD88415GUL, BD88400GUL

Manufacturer:

ROHM ↗

File Size:

566.95 KB

Description:

Coupling capacitorless headphone amplifiers.

Note:

This datasheet PDF includes multiple part numbers: BD88415GUL, BD88400GUL.
Please refer to the document for exact specifications by model.
