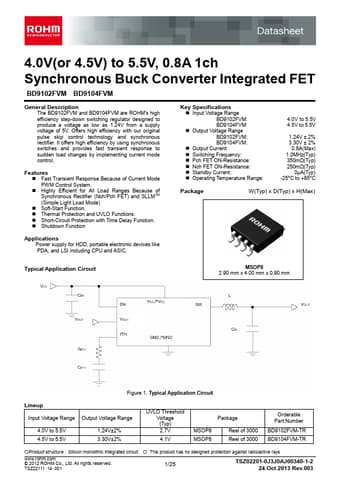

Part number: BD9102FVM
Manufacturer: ROHM (https://www.rohm.com/)
File Size: 0.97MB
Download: 馃搫 Datasheet
Description: Synchronous Buck Converter Integrated FET
1) Offers fast transient response with current mode PWM control system. 2) Offers highly efficiency for all load range with synchronous rectifier (Nch/Pch FET) TM and SLL.
ROHM鈥檚 high efficiency step-down switching regulator (BD9102FVM, BD9104FVM, BD9106FVM) is a power supply designed to produce a low voltage including 1.24 volts from 5 volts power supply line. Offers high efficiency with our original pulse skip contro.
Image gallery
