BD9109FVM Datasheet - Rohm

Synchronous Buck Converter

BD9109FVM Features

* Fast Transient Response because of Current Mode Control System

* High Efficiency for All Load Ranges because of Synchronous Switches (Nch and Pch FET) and SLLMTM (Simple Light Load Mode)

* Soft-Start Function

* Thermal Shutdown and ULVO Functions

* Short-Circuit Protection with

BD9109FVM General Description

The BD9106FVM, BD9107FVM, BD9109FVM, BD9110NV, and BD9120HFN are ROHM’s high efficiency step-down switching regulators designed to produce a voltage as low as 1V from a supply voltage of 3.3V or 5.0V. It offers high efficiency by using synchronous switches and provides fast transient response to sud.

BD9109FVM Datasheet (4.57 MB)

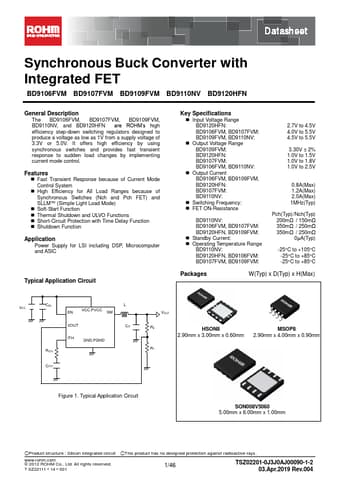

Preview of BD9109FVM PDF

Datasheet Details

Part number:

BD9109FVM

Manufacturer:

ROHM ↗

File Size:

4.57 MB

Description:

Synchronous buck converter.
