BD9106FVM, BD9120HFN, Synchronous Buck Converter

Datasheet Synchronous Buck Converter with Integrated FET BD9106FVM BD9107FVM BD9109FVM BD9110NV BD9120HFN General .
The BD9106FVM, BD9107FVM, BD9109FVM, BD9110NV, and BD9120HFN are ROHM’s high efficiency step-down switching regulators designed to produce a voltage a.

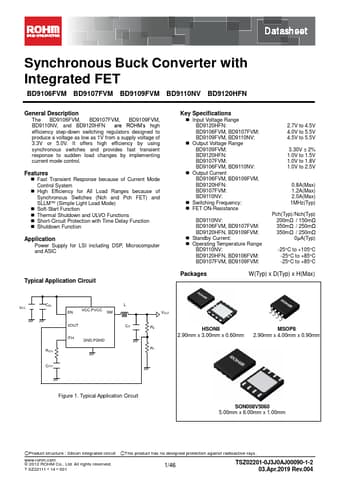

datasheet Preview Page 1 from Datasheet4u.com

BD9120HFN_Rohm.pdf

BD9106FVM Datasheet Preview — This datasheet PDF includes multiple part numbers: BD9106FVM, BD9120HFN. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD9106FVM, BD9120HFN

Manufacturer:

ROHM ↗

File Size:

4.57 MB

Description:

Synchronous Buck Converter

Note:

This datasheet PDF includes multiple part numbers: BD9106FVM, BD9120HFN.
Please refer to the document for exact specifications by model.

Features

* Fast Transient Response because of Current Mode Control System
* High Efficiency for All Load Ranges because of Synchronous Switches (Nch and Pch FET) and SLLMTM (Simple Light Load Mode)
* Soft-Start Function
* Thermal Shutdown and ULVO Functions
* Short-Circuit Protection with
