BD9892K Datasheet - Rohm

BD9892K DC-AC Inverter Controller

Pin No. Pin Name Function 1 COMP_A NA1 NB1 PGND_A NB2 NA2 STB VCC_A VREF FAIL PH REG DUTY BRT BCT_B Over voltage detect for 1ch,2ch FET driver for 1ch FET driver for 1ch Ground for FET drivers FET driver for 2ch FET driver for 2ch Stand-by switch Supply voltage input Reference voltage input for I.

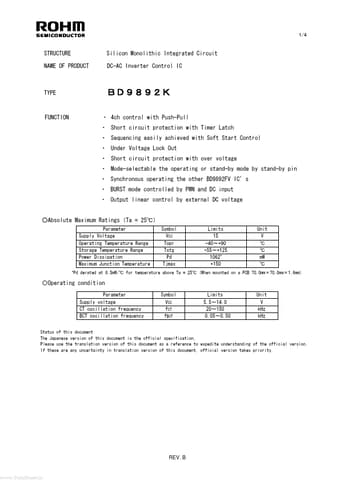

1/4 STRUCTURE NAME OF PRODUCT Silicon Monolithic Integrated Circuit DC-AC Inverter Control IC TYPE BD9892K 4ch control with Push-Pull Short circuit protection with Timer Latch Sequencing easily achieved with Soft Start Control Under Voltage Lock Out Short circuit protection with over voltage Mode-selectable the operating or stand-by mode by stand-by pin Synchronous operating the other BD9892FV IC’s BURST mode controlled by PWN and DC input Output linear control by external DC voltag.

BD9892K Datasheet (183.35 KB)

Preview of BD9892K PDF
BD9892K Datasheet Preview Page 2 BD9892K Datasheet Preview Page 3

Datasheet Details

Part number:

BD9892K

Manufacturer:

ROHM ↗

File Size:

183.35 KB

Description:

Dc-ac inverter controller.
