BD9895FV Datasheet - Rohm

BD9895FV DC-AC Inverter Controller

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 N1 P1 CP REG FAIL VREF CT_SYNC_OUT CT_SYNC_IN RT SRT GND BCT BRT DUTY STB VS2 IS2 FB2 VS1 IS1 FB1 SS COMP VCC UVLO P2 N2 PGND FET driver for 1ch FET driver for 1ch External capacitor from CP to GND for Timer Latch Int.

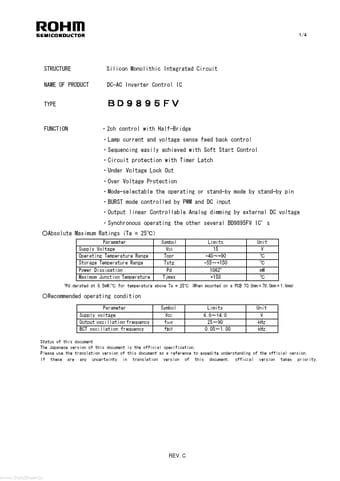

1/4 STRUCTURE NAME OF PRODUCT TYPE Silicon Monolithic Integrated Circuit DC-AC Inverter Control IC ＢＤ９８９５ＦＶ 2ch control with Half-Bridge Lamp current and voltage sense feed back control Sequencing easily achieved with Soft Start Control Circuit protection with Timer Latch Under Voltage Lock Out Over Voltage Protection Mode-selectable the operating or stand-by mode by stand-by pin BURST mode controlled by PWM and DC input Output linear Controllable Analog dimming by external DC voltage Synchro.
