DTC114EEB - NPN 100mA 50V Digital Transistors

This page provides the datasheet information for the DTC114EEB, a member of the DTC114E NPN 100mA 50V Digital Transistors family.

Datasheet Summary

Features

  • 1) Built-In Biasing Resistors, R1 = R2 = 10kW. 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DT.

📥 Download Datasheet

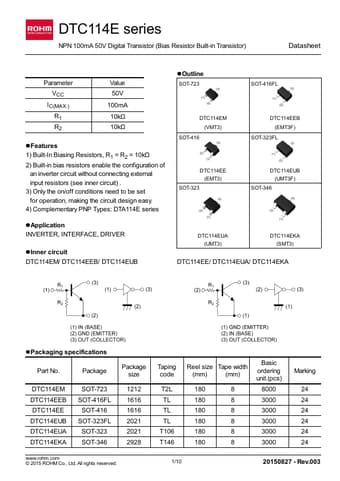

Datasheet preview – DTC114EEB
