DTC114EUA, DTC114E Datasheet - Rohm

DTC114EUA NPN 100mA 50V Digital Transistors

DTC114EUA Features

* 1) Built-In Biasing Resistors, R1 = R2 = 10kΩ 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Complementary P

DTC114E-Rohm.pdf

This datasheet PDF includes multiple part numbers: DTC114EUA, DTC114E. Please refer to the document for exact specifications by model.

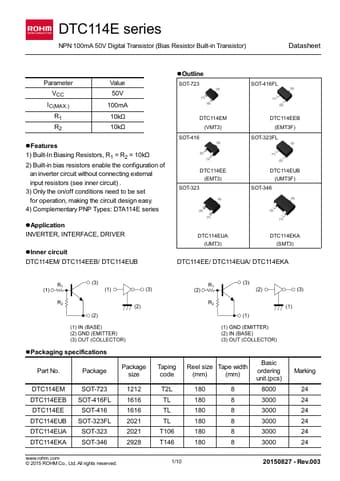

DTC114EUA Datasheet Preview Page 2 DTC114EUA Datasheet Preview Page 3

Datasheet Details

Part number:

DTC114EUA, DTC114E

Manufacturer:

ROHM ↗

File Size:

2.30 MB

Description:

Npn 100ma 50v digital transistors.

Note:

This datasheet PDF includes multiple part numbers: DTC114EUA, DTC114E.
Please refer to the document for exact specifications by model.
