* 1) Built-In Biasing Resistors, R1 = 10kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Compleme
DTC114YE
1.96 MB
Npn 100ma 50v digital transistors.

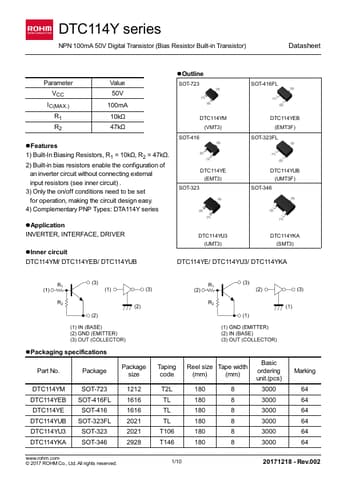

DTC114Y series
NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value 50V 100mA 10kΩ 47k.
