MS8054 CMOS Operational Amplifier

The MS805x are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers. All have a wide input common mode voltage range and output voltage swing, making them easy to use on single supplies as.

MS8054 Features

* Low cost

* Rail-to-Rail Output 2mV Typical VOS

* High Speed 250MHz, -3dB Bandwidth (G = +1) 130V/μs, Slew Rate 58ns Settling Time to 0.1% with 2V Step

* Supply Voltage Range: 2.5V to 5.5V

* Input Voltage Range: -0.2V to +3.8V with VS = 5V

* Excellent Video Specs (RL = 150Ω,

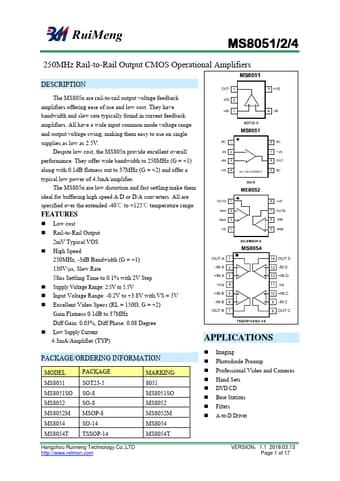

MS8051-Ruimeng.pdf

MS8054 Datasheet Preview — This datasheet PDF includes multiple part numbers: MS8054, MS8051. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MS8054, MS8051

Manufacturer:

Ruimeng

File Size:

1.01 MB

Description:

Cmos operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: MS8054, MS8051.
Please refer to the document for exact specifications by model.
