MS8002, MS8001 GaAs Schottky Diodes

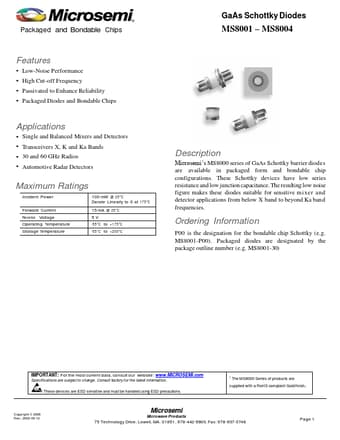

📥 Download Datasheet  Datasheet Preview Page 1

Description

® TM Packaged and Bondable Chips GaAs Schottky Diodes MS8001 * MS8004 .
Microsemi’s MS8000 series of GaAs Schottky barrier diodes are available in packaged form and bondable chip configurations.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MS8002, MS8001. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MS8002, MS8001
Manufacturer
Microsemi ↗
File Size
308.22 KB
Datasheet
MS8001-Microsemi.pdf
Description
GaAs Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: MS8002, MS8001.
Please refer to the document for exact specifications by model.

Features

* Low-Noise Performance
* High Cut-off Frequency
* Passivated to Enhance Reliability

Applications

* Single and Balanced Mixers and Detectors
* Transceivers X, K and Ka Bands
* 30 and 60 GHz Radios
* Automotive Radar Detectors Maximum Ratings Incident Power Forward Current Reverse Voltage Operating Temperature Storage Temperature 100 mW @ 25°C Derate Linearly to 0 at 175°C 15 m
