MS8004

GaAs Schottky Diodes

MS8004 Features

* Low-Noise Performance

* High Cut-off Frequency

* Passivated to Enhance Reliability

* Packaged Diodes and Bondable Chips Applications

* Single and Balanced Mixers and Detectors

* Transceivers X, K and Ka Bands

* 30 and 60 GHz Radios

* Automotive Radar Detectors Max

MS8004 General Description

Microsemi’s MS8000 series of GaAs Schottky barrier diodes are available in packaged form and bondable chip configurations. These Schottky devices have low series resistance and low junction capacitance. The resulting low noise figure makes these diodes suitable for sensitive mixer and detector appli.

MS8004 Datasheet (308.22 KB)

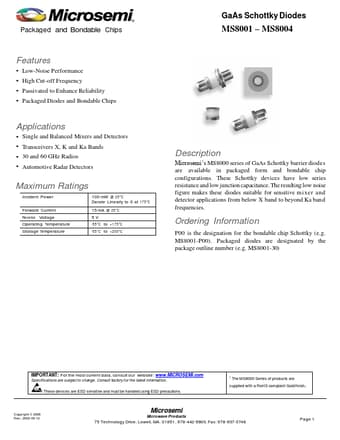

Preview of MS8004 PDF

Datasheet Details

Part number:

MS8004

Manufacturer:

Microsemi ↗

File Size:

308.22 KB

Description:

Gaas schottky diodes.
