MS8250-48 Schottky Diodes

The MS8520-48 is low barrier, N-type, silicon Schottky diode designed for applications in microwave mixers and detectors at frequencies from below 100 MHz to beyond 40 GHz. These Schottky diodes are packaged in the newly developed ultra-low capacitance M48 package that has shown improved sensitivity.

MS8250-48 Features

* For Detector and Mixer Applications

* Vertical Offset Contact

* Low Capacitance Package (0.09 pF)

* Available as Bondable Chips

* Priced for Commercial Applications Specifications @ 25°C

* VF (1 mA): 0.39 V Max.

* VB (10 A): 3 V Min.

* IR (1 V): 100 nA Max.

MS8250-48-Microsemi.pdf

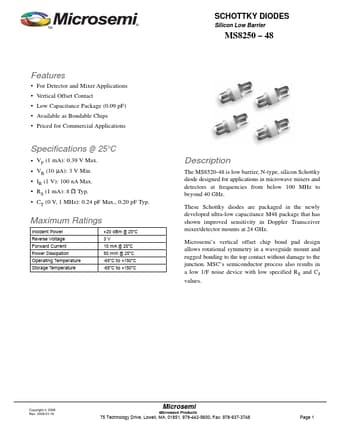

MS8250-48 Datasheet Preview — Preview of MS8250-48 PDF

Datasheet Details

Part number:

MS8250-48

Manufacturer:

Microsemi ↗

File Size:

114.21 KB

Description:

Schottky diodes.
