EKI07117 - N Channel Trench Power MOSFET

SANKEN

📥 Download Datasheet

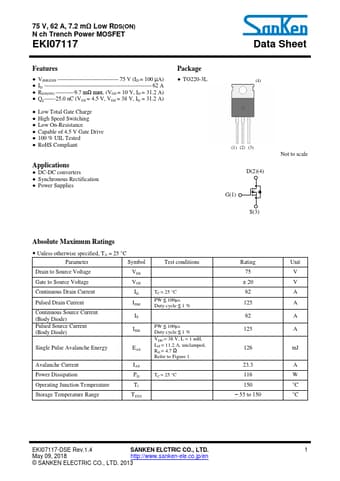

EKI07117 Datasheet Preview — Preview of EKI07117 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: EKI07117
Manufacturer: Sanken ↗
File Size: 604.68 KB
Datasheet: EKI07117-SANKEN.pdf
Description: N Channel Trench Power MOSFET

EKI07117 Product details

Features

V(BR)DSS --------------------------------- 75 V (ID = 100 µA).
ID ---------------------------------------------------------- 62 A.
RDS(ON) ----------9.7 mΩ max. (VGS = 10 V, ID = 31.2 A).
Qg------25.0 nC (VGS = 4.5 V, VDS = 38 V, ID = 31.2 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-220 (4) D (1) (2) (3) GDS.
