SW150N10A Datasheet, Mosfet, SEMIPOWER

SW150N10A Features

  • Mosfet TO-220
  • High ruggedness
  • RDS(ON) (Max 5.6m Ω)@VGS=10V
  • Gate Charge (Typ 160nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested 12 3 1.

PDF File Details

Part number:

SW150N10A

Manufacturer:

SEMIPOWER

File Size:

527.14kb

Download:

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

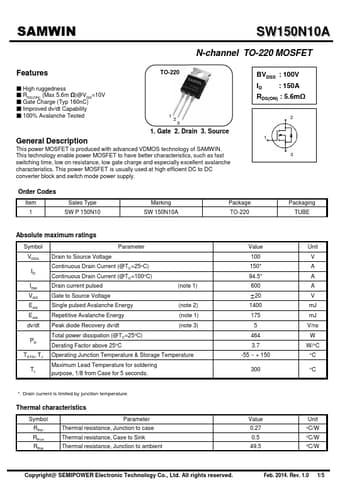

Datasheet Preview: SW150N10A 📥 Download PDF (527.14kb)
Page 2 of SW150N10A Page 3 of SW150N10A
