SW15N50 Datasheet, Mosfet, SEMIPOWER

SW15N50 Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 0.32Ω)@VGS=10V
  • Gate Charge (Typ 66 nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested TO-220F 123 1. Gat

PDF File Details

Part number:

SW15N50

Manufacturer:

SEMIPOWER

File Size:

513.33kb

Download:

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

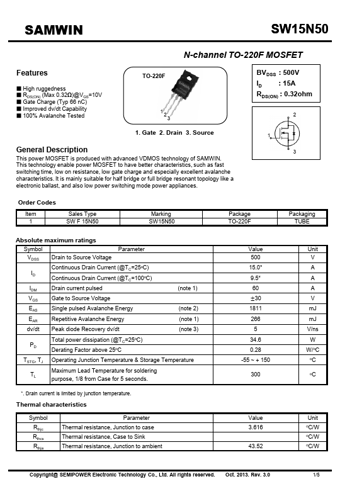

Datasheet Preview: SW15N50 📥 Download PDF (513.33kb)
Page 2 of SW15N50 Page 3 of SW15N50
