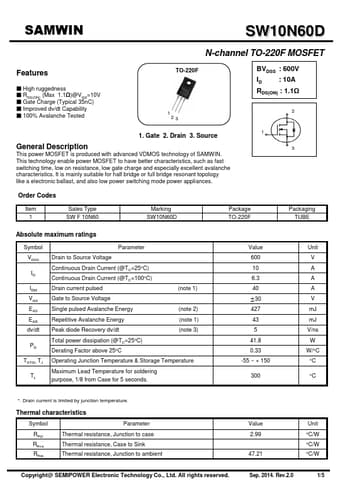

SW10N60D Datasheet, Mosfet, SEMIPOWER

SW10N60D Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 1.1Ω)@VGS=10V
• Gate Charge (Typical 35nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-220F 1 23 BV

PDF File Details

Part number:

SW10N60D

Manufacturer:

SEMIPOWER

File Size:

649.65kb

Download:

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri
