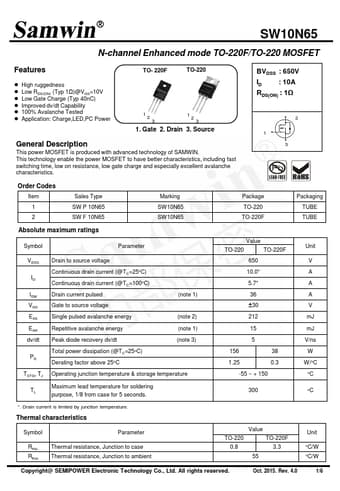

SW10N65 Datasheet, Mosfet, SAMWIN

SW10N65 Features

• Mosfet TO- 220F TO-220
• High ruggedness
• Low RDS(ON) (Typ 1Ω)@VGS=10V
• Low Gate Charge (Typ 40nC)
• Improved dv/dt Capability
• 100% Avalanche Tes

PDF File Details

Part number:

SW10N65

Manufacturer:

SAMWIN

File Size:

605.17kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characterist
