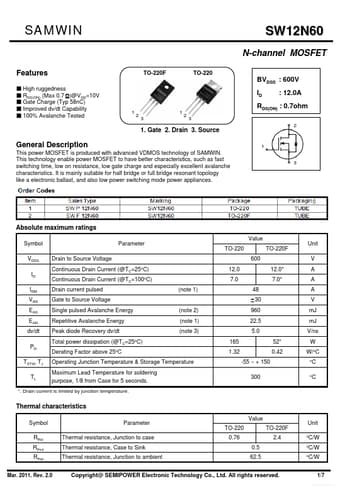

SW12N60 Datasheet, Mosfet, SAMWIN

✔ SW12N60 Features

High ruggedness
RDS(ON) (Max 0.7 Ω)@VGS=10V
Gate Charge (Typ 58nC)
Improved dv/dt Capability
100% Avalanche Tested TO-220F TO-220 BVDSS : 600V ID 1 2 1 3 2

PDF File Details

SAMWIN manufacturer logo

Part number:

SW12N60

Manufacturer:

SAMWIN

File Size:

1.15MB

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

📥 Download PDF (1.15MB)
