SW120N04M Datasheet, Mosfet, SEMIPOWER

✔ SW120N04M Features

TO-220
High ruggedness
RDS(ON) (Max5mΩ)@VGS=10V
Gate Charge (Typical 57nC)
Improved dv/dt Capability
100% Avalanche Tested 12 3 1. Gate 2. Drain 3. Source G

PDF File Details

SEMIPOWER manufacturer logo

Part number:

SW120N04M

Manufacturer:

SEMIPOWER

File Size:

734.53kb

Download:

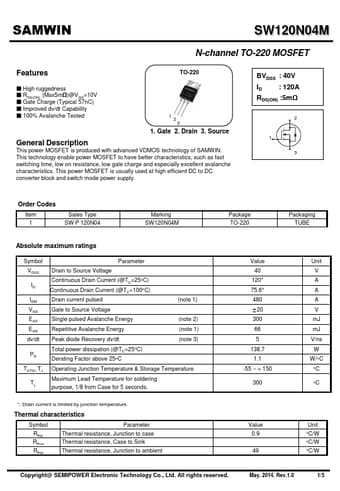

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

📥 Download PDF (734.53kb)
