SW10N65K Datasheet, Mosfet, SEMIPOWER

SW10N65K Features

  • Mosfet TO-220 TO-220F TO-251N TO-252 TO-262 TO-220SF BVDSS : 650V
  • High ruggedness
  • Low RDS(ON) (Typ 0.36Ω)@VGS=10V
  • Low Gate Charge (Typ29nC)
  • Improved

PDF File Details

Part number:

SW10N65K

Manufacturer:

SEMIPOWER

File Size:

1.30MB

Download:

📄 Datasheet

Description:

N-channel mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced super junction technology of SAMWIN. ID : 10A RDS(ON) :0.

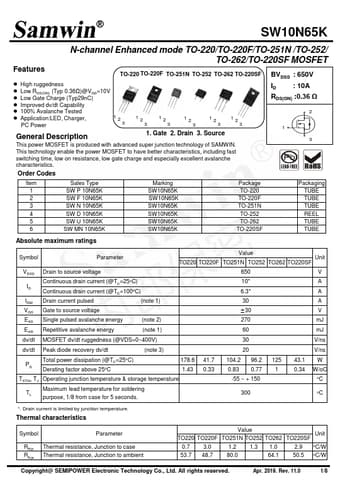

Datasheet Preview: SW10N65K 📥 Download PDF (1.30MB)
Page 2 of SW10N65K Page 3 of SW10N65K
