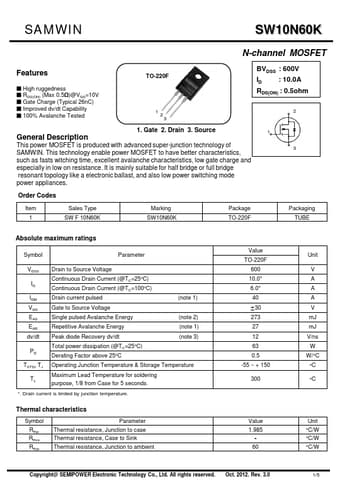

SW10N60K Datasheet, Mosfet, SAMWIN

SW10N60K Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 0.5Ω)@VGS=10V
• Gate Charge (Typical 26nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-220F 1 2 3 B

PDF File Details

Part number:

SW10N60K

Manufacturer:

SAMWIN

File Size:

374.81kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced super-junction technology of SAMWIN. This technology enable power MOSFET to have better c
